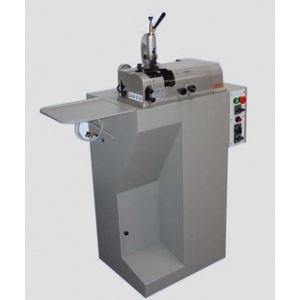

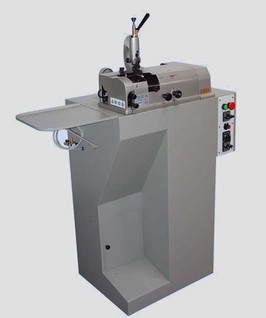

Skiving machine AV2 M

av2m3ridgrey
Brand: Fratelli AlbertiFratelli Alberti

The skivers AV2 M are machines to skive stiff and heavy materials having thickness up to mm. 2. Usually they are supplied on a metal stand. They can be equipped with a lubricating device for processing thermoplastic materials (S.LUB. – part code no. 2671 C). The reduced knife rotation speed avoids the blade overheating and maintains sharp the cutting edge. The skiving machines for leather and inner-counters not exceeding the thickness of mm. 2 are available in the following versions:
AV2 C: head only
AV2 M1: on metal stand with one motor controlling the feeding and the knife and one independent grindstone motor. The machine features a fixed speed for the feeding and the knife.
AV2 M2: on metal stand with two independent motors controlling the feeding and the knife and one independent grindstone motor. The machine features a fixed speed for the feeding and the knife, but, for particular works (insoles), you can invert the rotation direction of the knife.
AV2 M3: on metal stand with two independent motors controlling the feeding and the knife, one independent grindstone motor and with electronically variable speed of the feeding motor.

AV2 M3K: on metal stand with two independent motors controlling the feeding and the knife, both with electronic variable speed, and one independent grindstone motor. The knife rotation speed can be reduced to cut binding and gummy materials.



Click on image to enlarge

Informations Download brochure



Technical data

Height

cm. 133



Depth

cm. 38

Width

cm. 55



Net weight

Kg. 80 (kg. 94 with var.speed.)

Power request

Kw. 1,5 (Hp 2)
